GIOTTO para Origin, generador inteligente de flats

The Celestron Origin Smart Telescope is designed to simplify deep-sky imaging, automatically applying factory-calibrated flat frames to enhance image quality. However, when the camera is rotated to better frame a target or when new cameras become available in the future, the original calibration becomes inaccurate, requiring a new flat frame capture. This is where the GIOTTO for Origin flat field generator comes in. Designed specifically for the Origin telescope, GIOTTO ensures precise and consistent flat frame calibration by uniformly illuminating the optics with our advanced LED technology. It seamlessly fits onto Origin’s dew shield, locking securely in place, and allows users to wirelessly control brightness levels via their smart device. With GIOTTO for Origin, astrophotographers can easily recalibrate their telescope whenever needed, ensuring the highest image quality for every capture.

GIOTTO for Origin Smart Flat Field Generator - main features:

• Designed for Celestron Origin Intelligent Home Observatory
• LED lights at color temperature similar to sunlight, to provide a neutral color tone
• Special designed light diffuser for an even illumination
• Adjustable light intensity by 100 steps (0 to 100%)
• It operates on a 12V power source
• USB-C port to let you easily connect it to a Windows computer
• WiFi connectivity so you can wirelessly control it using your smartphone or tablet via the included Virtual HandPad
• Control with PLAY astrophotography software for Windows computers
• ASCOM driver to let you control it through third party softwares
• Weight: 0.4 kg (0.9 lb)

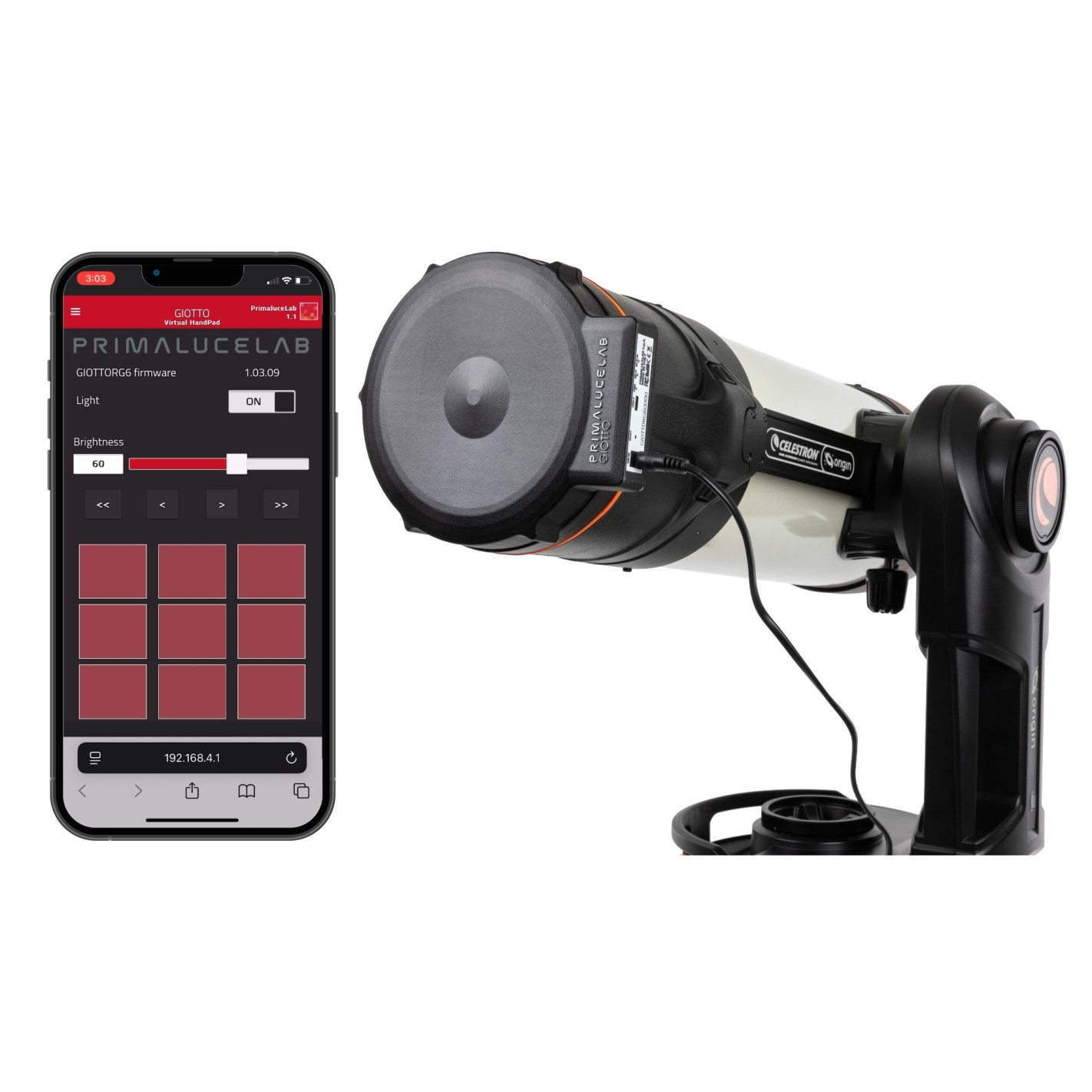

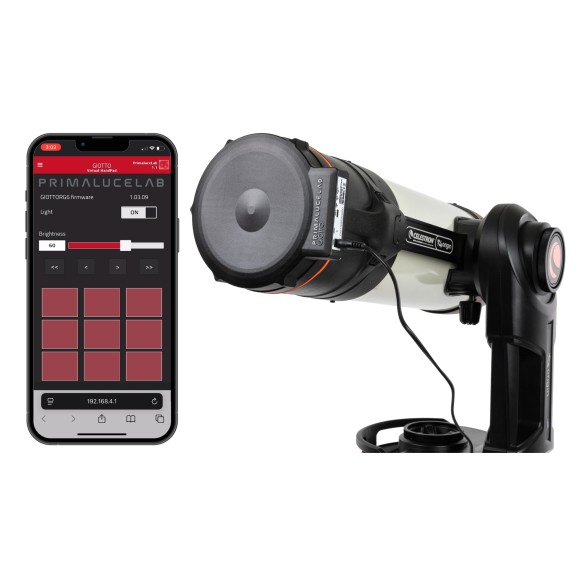

Use the Virtual HandPad to control GIOTTO using the same smart device used to control Origin

Controlling GIOTTO for Origin is as intuitive as using your Origin Smart Telescope. Since Origin users already operate their telescope via a smartphone or tablet, they can use the same smart device to wirelessly control GIOTTO for Origin by using the Virtual HandPad and its easy-to-use interface. By simply connecting to GIOTTO’s built-in Wi-Fi and accessing its control page, users can activate the flat field generator and adjust brightness levels and  with precision.

GIOTTO includes electronics for USB control from a computer

At the bottom of GIOTTO for Origin, you’ll find the control panel with a USB-C port, allowing you to easily connect it to a standard Windows computer, if preferred. GIOTTO natively operates on a 12V power source, and the package includes a 12V power cable with a cigarette lighter plug for convenient power supply. If you prefer to use an external power source, make sure it provides 12V at least 2A and features a 5.5/2.5mm center-positive power plug.

GIOTTO for Origin works also with PLAY astrophotography software

If you prefer to control GIOTTO for Origin by using a Windows computer, you can use PLAY astrophotography software that provides an easy to use interface to activate your GIOTTO and precisely adjust its brightness. And if you want to use your preferred Windows astrophotography software, you can also control GIOTTO by using other softwares thanks to the dedicated ASCOM driver.

GIOTTO for Origin is designed for Origin Intelligent Home Observatory

GIOTTO for Origin smart flat field generator fits directly onto the end of Origin’s dew shield and locks into place with the same tabs used by Origin’s dust cover. To secure GIOTTO for Origin in front of the telescope, rotate it in the same way you do to fix the telescope’s original dust cover. Please note that, unlike other GIOTTO models, GIOTTO for Origin is not compatible with the ALTO telescope cover motor.

GIOTTO for Origin, Smart Flat Field Generator: scope of delivery.

• GIOTTO for Origin smart flat field generator
• USB-C to USB-A cable
• 12V power cable with cigarette plug
• GIOTTO quick start guide
