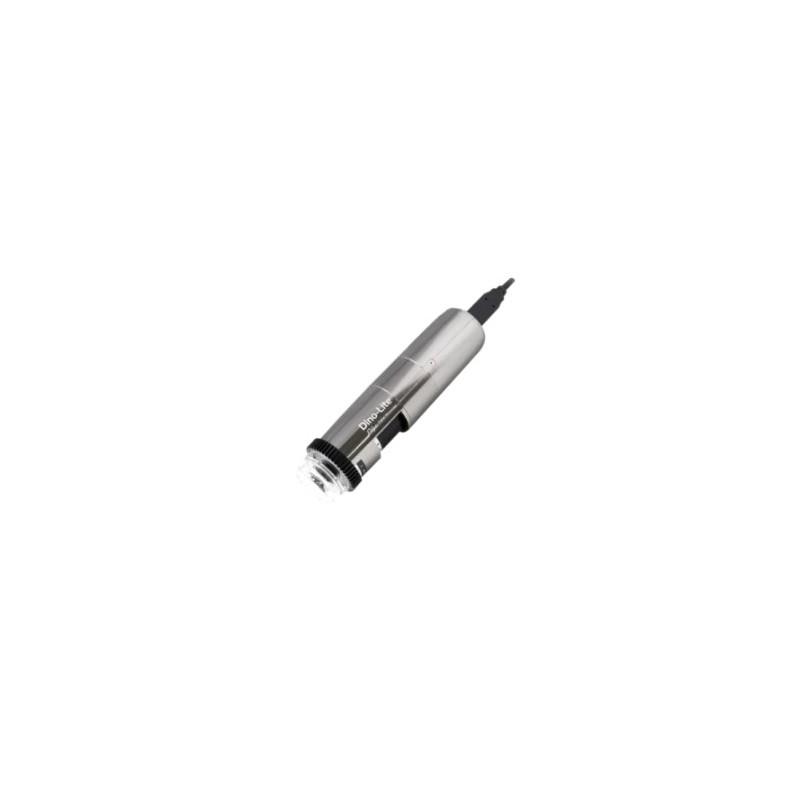

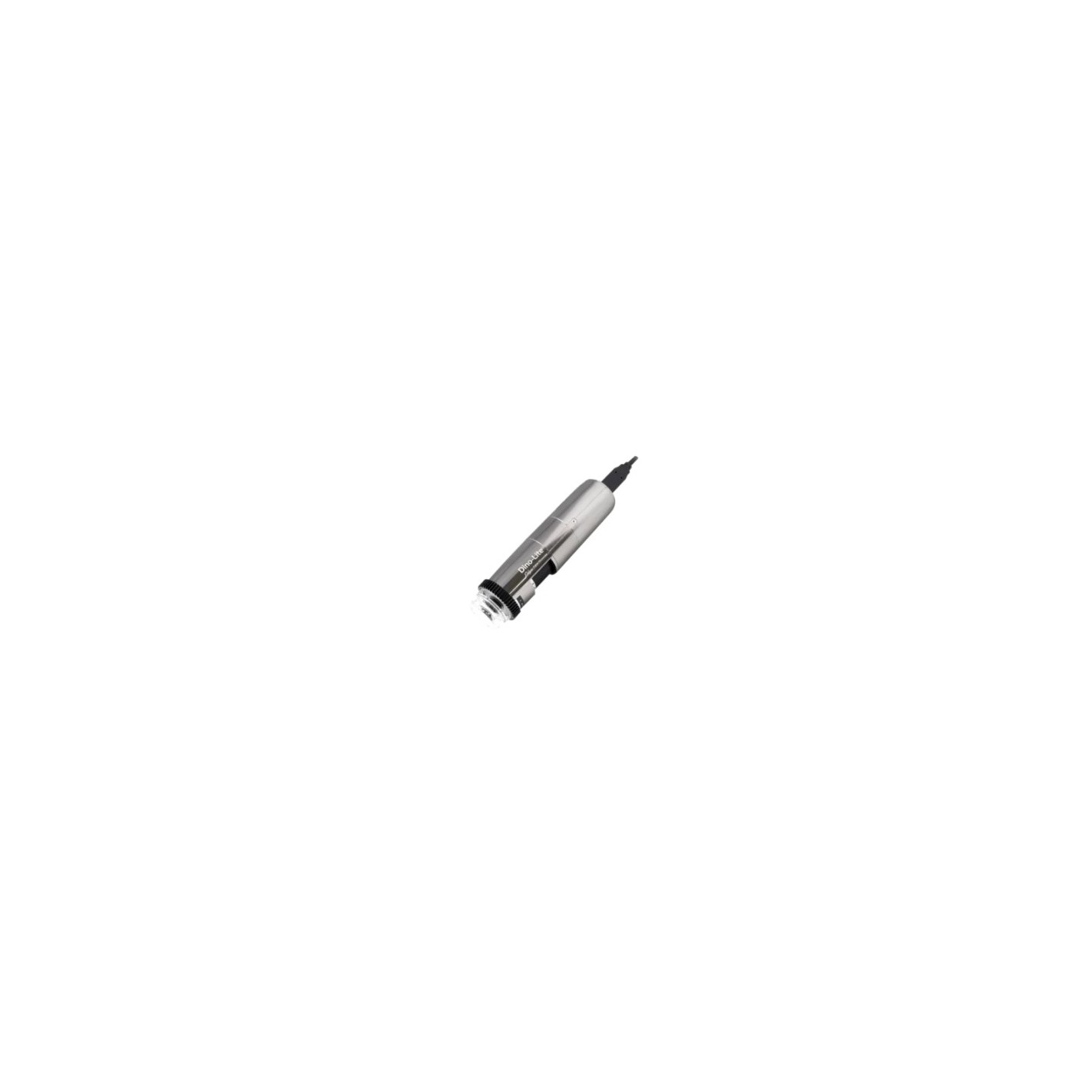

Llevando la calidad de imagen al siguiente nivel, el microscopio digital AM8117MZT de 8 megapíxeles ofrece alta resolución y fidelidad de color para una experiencia de imagen detallada y natural. El AM8117MZT incluye un polarizador para reducir reflejos no deseados, así como eFLC para maximizar la ajustabilidad de la iluminación.
Las principales características del AM8117MZT son:
• 8 megapíxeles
• Alta resolución óptica
• Control mejorado de LED flexibles (eFLC)
• Polarizador ajustable
• Carcasa de metal resistente
• Aumento de 10x a 220x (La sombra en los bordes ocurre por debajo de 25x al previsualizar en ventanas 16:9.)
• Y más…
Especificación
| Lighting |
| Light/ LED type |
White |
| Number of LEDs |
8 |
| Optics |
| Magnification |
10x ~ 220x |
| Working distance |
142.6 ~ 11.5 mm |
| Sensor |
| Sensor type |
CMOS |
| Resolution |
8 Megapixel (3840 x 2160) |
| Maximum frame rate |
10 fps at 8.0 MP, MJPEG 25 fps at 2.0 MP, MJPEG |
| Compatibility |
| Interface |
USB 2.0 |
| Operating system |
Windows 10/11 |
| Supported image formats (Windows) |
BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM |
| Supported video formats (Windows) |
WMV, FLV, SWF |
| Housing |
| Housing material |
Metal housing |
| Dimensions |
130 mm (H) x 33 mm (D) |
| Weight |
120 g |
| Features |
| Measurement |
Yes |
| Calibration |
Yes |
| Microtouch sensor |
Yes |
| Information |
| Package contents |
N3C-C (Close Cap) N3C-D (Diffuser Cap) N3C-D2 (Opal Diffuser Cap) N3C-E (Extended Open Cap) N3C-L (Long Cap) N3C-O (Open Cap) N3C-S (Sidelight Cap) |
| Warranty information |
2 years European warranty |
| Regulatory approval: |
CE, FCC, ROHS |
Working distance/field of view/ depth of field:
| MAGNIFICATION RATE |
WORKING DISTANCE * |
FIELD OF VIEW(X) |
FIELD OF VIEW(Y) |
DEPTH OF FIELD |
| 10 |
142.6 |
60.69 |
34.14 |
26.15 |
| 20 |
59.8 |
30.35 |
17.07 |
7.05 |
| 30 |
33.1 |
20.23 |
11.38 |
3.36 |
| 40 |
20.5 |
15.17 |
8.53 |
2.02 |
| 50 |
13.4 |
12.14 |
6.83 |
1.38 |
| 60 |
9.2 |
10.11 |
5.69 |
1.01 |
| 70 |
6.7 |
8.67 |
4.88 |
0.79 |
| 80 |
5.1 |
7.59 |
4.27 |
0.64 |
| 90 |
4.1 |
6.74 |
3.79 |
0.53 |
| 100 |
3.7 |
6.07 |
3.41 |
0.45 |
| 110 |
3.6 |
5.52 |
3.10 |
0.39 |
| 120 |
3.7 |
5.06 |
2.85 |
0.34 |
| 130 |
4.1 |
4.67 |
2.63 |
0.30 |
| 140 |
4.5 |
4.34 |
2.44 |
0.27 |
| 150 |
5.2 |
4.05 |
2.28 |
0.25 |
| 160 |
5.9 |
3.79 |
2.13 |
0.22 |
| 170 |
6.7 |
3.57 |
2.01 |
0.21 |
| 180 |
7.5 |
3.37 |
1.90 |
0.19 |
| 190 |
8.5 |
3.20 |
1.80 |
0.18 |
| 200 |
9.4 |
3.03 |
1.71 |
0.16 |
| 210 |
10.5 |
2.89 |
1.63 |
0.15 |
| 220 |
11.5 |
2.76 |
1.55 |
0.14 |
| Listed values may differ slightly |
* Without front cap |
|
Unit = mm |
