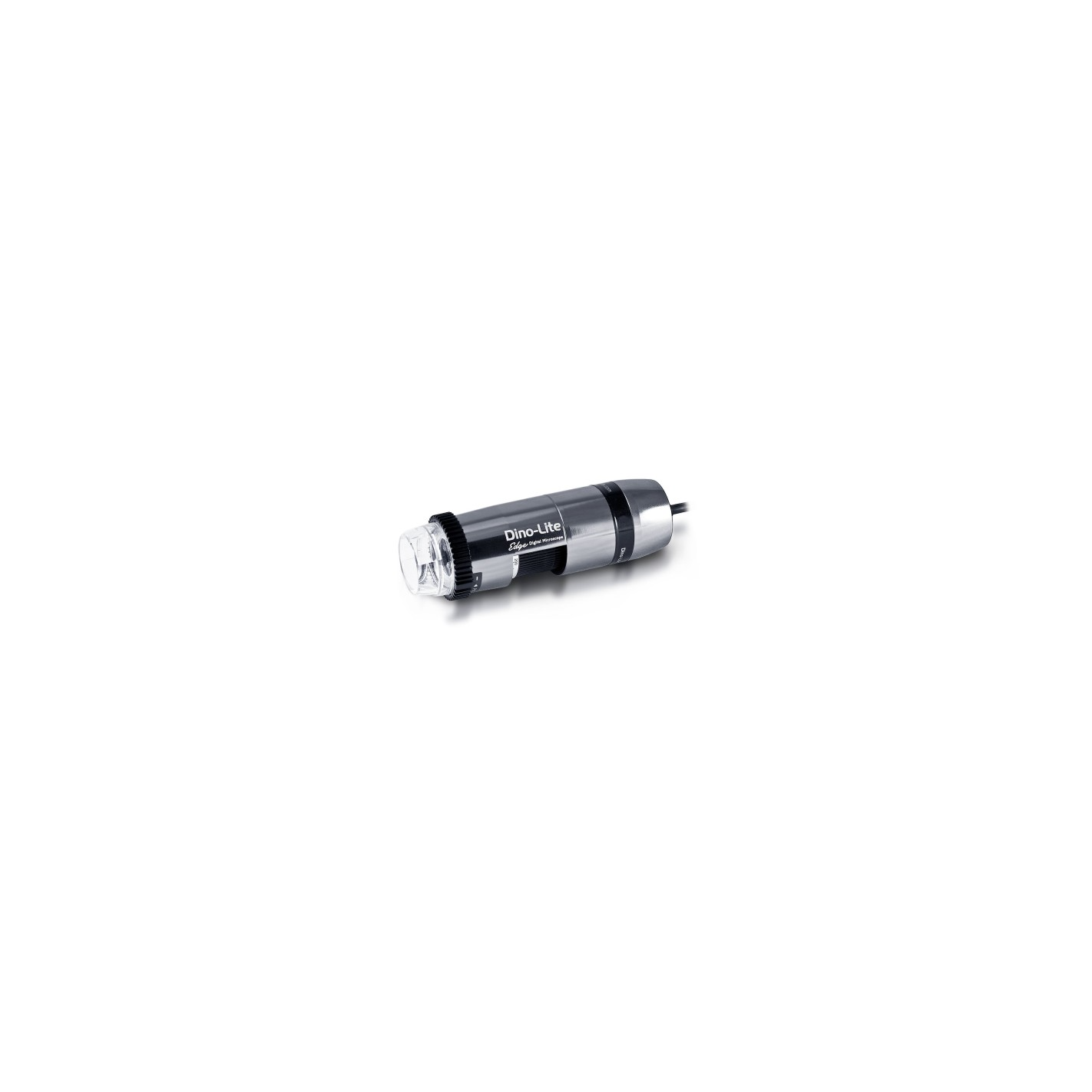

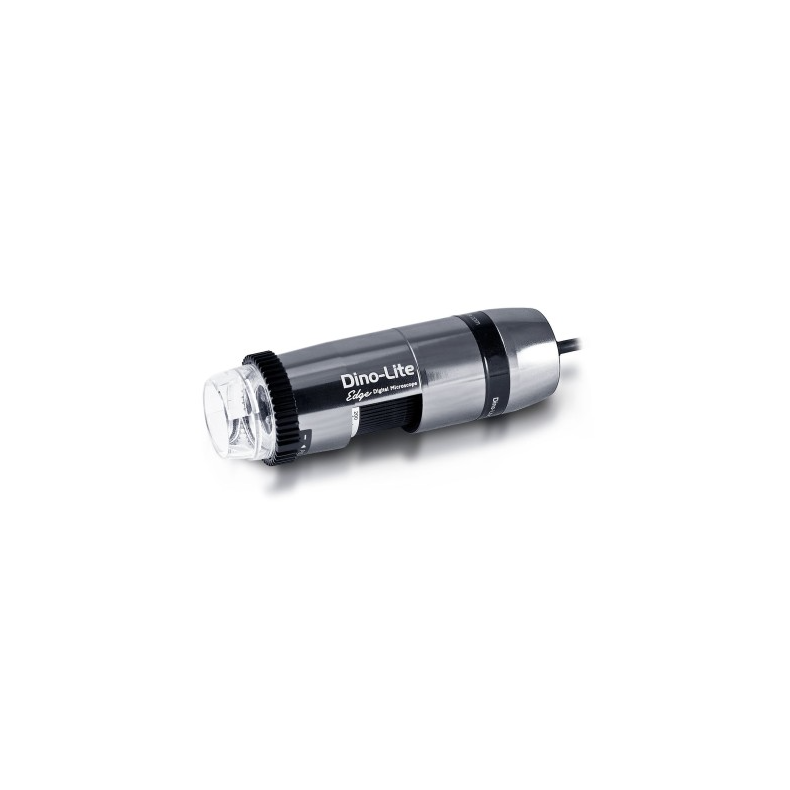

Gracias al uso de la óptica más reciente e innovadora, un sensor completamente nuevo de 5 megapíxeles y varias características especiales, como el control de LED flexible (FLC) y estructura de aluminio macizo, el AM7115MZT de Dino-Lite es una maravilla de la tecnología y la mejor elección para el profesional más exigente.
El modelo AM7115MZT de Dino-Lite ofrece una calidad de imagen y una reproducción del color magníficas, con un armazón robusto, compacto y atractivo.
AM7115MZT forma parte de la gama universal y con su distancia de trabajo estándar y amplia gama de aumentos que van de 10 a 220x, es adecuado para una amplia gama de aplicaciones. Gracias al filtro de polarización integrado, este modelo es ideal cuando se trabaja con objetos brillantes o reflectantes, como metal, plástico, cristal, joyas, componentes electrónicos, etc.
Las principales características del AM7115MZT son:
• Sensor Edge de 5 megapíxeles
• Aumento de 10-220x
• Polarizador integrado
• Armazón de aluminio
• Control de LED flexible (FLC)
• Amplias funciones de medición
• Calibración
• Cápsulas frontales intercambiables
• Y mucho más...
| MAGNIFICATION RATE |
WORKING DISTANCE 1 |
WORKING DISTANCE 2* |
FIELD OF VIEW(X) |
FIELD OF VIEW(Y) |
DEPTH OF FIELD |
Listed values may differ slightly
|
|
* Without front cap |
|
|
Unit = mm |
| 10 |
- |
142.6 |
39.6 |
29.7 |
2.6 |
| 20 |
52.7 |
60.1 |
19.5 |
15.6 |
2.5 |
| 30 |
26.0 |
33.5 |
13.0 |
10.4 |
1.8 |
| 40 |
13.4 |
20.9 |
9.8 |
7.8 |
1.5 |
| 50 |
6.4 |
13.9 |
7.8 |
6.3 |
- |
| 60 |
2.2 |
9.7 |
6.5 |
5.2 |
- |
| 70 |
- |
7.1 |
5.6 |
4.5 |
1.0 |
| 80 |
- |
5.5 |
4.9 |
3.9 |
- |
| 90 |
- |
4.5 |
4.3 |
3.5 |
- |
| 100 |
- |
4.1 |
3.9 |
3.1 |
- |
| 110 |
- |
4.0 |
3.6 |
2.8 |
- |
| 120 |
- |
4.1 |
3.3 |
2.6 |
- |
| 130 |
- |
4.5 |
3.0 |
2.4 |
- |
| 140 |
- |
5.0 |
2.8 |
2.2 |
- |
| 150 |
- |
5.6 |
2.6 |
2.1 |
- |
| 160 |
- |
6.3 |
2.4 |
2.0 |
- |
| 170 |
- |
7.1 |
2.3 |
1.8 |
- |
| 180 |
- |
8.0 |
2.2 |
1.7 |
- |
| 190 |
- |
8.9 |
2.1 |
1.6 |
- |
| 200 |
- |
9.9 |
2.0 |
1.6 |
- |
| 210 |
- |
10.9 |
1.9 |
1.5 |
- |
| 220 |
- |
11.9 |
1.8 |
1.4 |
0.1 |
| Lighting |
| Light/ LED type |
White |
| Number of LEDs |
8 |
| LED on/off switchable: |
Yes |
| Infrared filter |
IR cut-filter >650 nm |
| Diffuser available |
Yes (N3C-D included) |
| Emission filter |
No |
| Polarizer |
Yes, linear |
| Optics |
| Magnification |
20-220x |
| Macro zoom |
No |
| Working distance |
Standard |
| Lens type |
Glass with anti-reflection coating |
| Sensor |
| Sensor type |
CMOS |
| Resolution |
5 Megapixel (2592x1944) |
| Maximum frame rate |
30 fps |
| Compatibility |
| Interface |
USB 2.0 |
| Operating system |
Windows 7, 8, 10 & 11, MacOS 10.9 and up |
| Included software |
DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Supported image formats (Windows) |
BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats (Windows) |
WMV, FLV, SWF |
| Supported image formats (MacOS) |
JPEG, PNG |
| Supported video formats (MacOS) |
MOV (max 1.3MP) |
| Imaging standards |
DirectShow, UVC |
| Wifi |
Wireless-ready, requires the WF-10 WiFi streamer (optional) |
| Housing |
| Housing material |
Metal housing |
| Dimensions |
10.5cm (L) x 3.2cm (D) |
| Weight |
135gr |
| Cable length |
1.8m |
| Features |
| Special feature |
Flexible LED Control (FLC) |
| Measurement |
Yes |
| Calibration |
Yes |
| Microtouch sensor |
Yes |
| ESD safe |
Yes |
| Information |
| Package contents |
Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, N3c-extension cap, N3C-L- Long cap, N3C-S- Side light cap |
| Warranty information |
2 years European warranty |
| Regulatory approval |
CE, FCC, ROHS |
| Price range |
€750,00 - €1000,00 |
